USB 3.0 Port 90° DIP Stainless Steel Receptacle Gold Plating
Contact 48H Salt Spray Test High Reliable USB Receptacle
What is USB Receptacle?
The USB receptacle, often referred to as a USB port, acts as the
entry point for connecting USB plugs to devices. Serving as the
female connector, it accommodates the insertion of the male end of
a USB cable or connector. These ports vary in shape and size to
accommodate different types of USB connectors, including USB-A,
USB-B, USB-C, or Micro USB. Beyond serving as a physical interface,
the receptacle facilitates essential functions such as data
transfer and power delivery between the device and any connected
peripherals.
USB 3.0 Receptacle (USB connector, USB port)
USB 3.0 receptacle refers to the female connector or port designed
to accept USB 3.0 plugs. USB 3.0 is a standard for USB (Universal
Serial Bus) connections that offers faster data transfer speeds
compared to its predecessors, such as USB 2.0. The receptacle
typically has a blue color coding to distinguish it from USB 2.0
ports, indicating its compatibility with USB 3.0 devices.
Image ofU3-AY0901004-R USB3.0 Port / Receptacle
Housing Color: Blue
Technical Data
| Part Number | U3-AY0901004-R |
1. Electrical | |
| Voltage Rating | 30V AC |
| Current Rating | 1.8 Amp for VBUS and GND contacts, 0.25A for other contacts |
| Contact Resistance | 30mΩ Max |
| Withstand Voltage | 500V AC for one minute at sea level |
| - | - |
2. Mechanical | |
| Mating Force | 35N Max |
| Unmating Force | 10N Min |
| Life Cycle | 5000 |
3. Environmental | |
| Operating Temperature | -40℃ to 85℃ |
| Salt Spray Test | 48H at 35℃ with 5%-salt-solution concentration |
4. Material | |
| Housing | PA10T Blue |
| Contact | Copper Alloy T=0.20 |
| Shell | Stainless Steel T=0.30 |
| - | - |
5. Plating | |
| Contact | Gold plating on contact area/matte tin 80u"plated on soldertail,
all over 50u" nickel plating |
| Shell | All over 50u" min nickel plating |

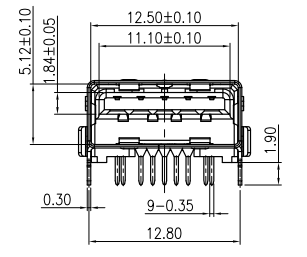

Dimension of U3-AY0901004-R USB 3.0 Female Connector
* All the data above for reference only, please contact Alinta
Electronics to confirm more detailed and latest informaiton.
Alinta provides our customers with robust, reliable, and
long-life-cycle USB 2.0 connectors. With a strong engineering and
quality team, we are qualified to offer customized products at
competitive prices. Please feel free to share your drawings or
ideas at your convenience, let us realize into physical product.
For a dependable and customizable USB connector solution, reach out
to Alinta today! Let us assist you in finding the perfect solution
for your needs.
