Alinta 3.96mm Pitch 1 to 10P Verticle SMT PCB Connector High Reliability 7A Wafer Connector

Product Descriptiom

A wire-to-board connector is a type of electrical connector used to connect wires to a printed circuit board (PCB). It consists of two main components: the housing and the contacts. The housing is usually mounted on the PCB and contains slots or receptacles where the contacts are inserted. The contacts are typically crimped onto the wires and then inserted into the housing, creating a secure electrical connection between the wires and the PCB.

These connectors are commonly used in various electronic devices and applications where it's necessary to connect wires to a circuit board, such as in computer peripherals, automotive electronics, industrial machinery, and consumer electronics. They come in different sizes, configurations, and specifications to accommodate various wire gauges, current ratings, and environmental conditions.

Alinta Wire-to-Board Connector Series

Discover reliable Wire-to-Board (WTB) connectors and cable assemblies from Alinta, offering pitch sizes ranging from 1.0mm to 6.35mm. Our connectors cater to diverse industries, including automotive, appliances, industrial, data & telecommunications, and consumer electronics.

Benefit from a wide array of advantages with our WTB connectors, making them an optimal choice for various applications. Enjoy the flexibility of customization options to tailor the connectors precisely to your requirements.

(2 Pin image)

Technical Parameter

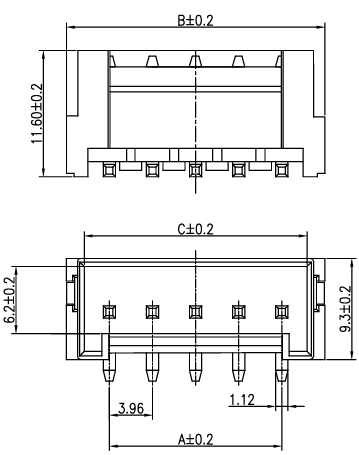

Dimension of X7602-V 3.96mm pitch Verticle SMT type Wafer Connector

For a dependable and customizable WTB connector solution, reach out to Alinta today! Let us assist you in finding the perfect solution for your needs.

Alinta Electronics Co., Ltd. (Shenzhen Jingsheng Electronics Co., Ltd.) founded in 2007, is a professional connector manufacuturer dedicated to the design, manufacture and sales of a wide range of products, including wire-to-board connectors, board-to-board connectors, wire-to-wire connectors, terminal blocks, USB connectors, tact switches and data cables.

With a workforce of over 300 employees and more than 200 automated machines, Alinta is committed to delivering a monthly production capacity of 25kk units. The company guarantees prompt responses to quotes and inquiries within 24 hours. Alinta has strong product design and development capabilities, along with comprehensive development and quality control processes. The company holds more than 50 utility model patents and is certified under ISO9001, ISO14001 and IATF16949 standards.

Alinta operates two major automated industrial production bases and maintains a professional customer support service team, providing products and services to over100 well-known domestic and international customers.

Our core values are "Customer First, Integrity, Agility and Innovation". Our mission is to provide customers with cost-effective products and services, aiming to become a long-term reliable partner for our customers.
