Product Descriptiom
A wire-to-board connector is a type of electrical connector used to
connect wires to a printed circuit board (PCB). It consists of two
main components: the housing and the contacts. The housing is
usually mounted on the PCB and contains slots or receptacles where
the contacts are inserted. The contacts are typically crimped onto
the wires and then inserted into the housing, creating a secure
electrical connection between the wires and the PCB.
These connectors are commonly used in various electronic devices
and applications where it's necessary to connect wires to a circuit
board, such as in computer peripherals, automotive electronics,
industrial machinery, and consumer electronics. They come in
different sizes, configurations, and specifications to accommodate
various wire gauges, current ratings, and environmental conditions.
Alinta Wire-to-Board Connector Series
Discover reliable Wire-to-Board (WTB) connectors and cable
assemblies from Alinta, offering pitch sizes ranging from 1.0mm to
6.35mm. Our connectors cater to diverse industries, including
automotive, appliances, industrial, data & telecommunications, and
consumer electronics.
Benefit from a wide array of advantages with our WTB connectors,
making them an optimal choice for various applications. Enjoy the
flexibility of customization options to tailor the connectors
precisely to your requirements.

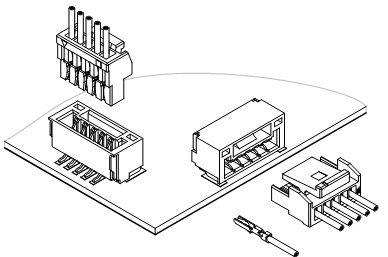

(5 pin image)
Technical Parameter
| Product Type Features | Category | Wire to Board |
| Assembly Type | Wafer, Receptacle |
| Pitch (mm) | 1.25mm |
| Product Series | AL-X2206 series |
| Electrical characteristics | Rated Voltage (V AC/DC) | 50 |
| Rated Current (A AC/DC) | 1 |
| Contact Resistance | ≤20mΩ |
| Insulation Resistance Withstand Voltage | ≥100MΩ 500V AC/Minute |
| Configuration Features | Number of Rows | 1 |
| Number of Positions
Applicable | 2~20
AWG #30 ~ AWG #26 |
| Shell characteristics | Color | Beige |
| Housing Material Contact Material | LCP, UL94V-0 Brass, Sn-plated |
| Environmental Info | Operating Temperature Range (°C) | -20℃~85℃ |
Mounting Dimension
Verticle, SMT(90°) Horizontal, SMT(180°)
Wafer / Receptacle Straight
|
| Poles | DIM=A | DIM=B | | 2 | 1.25 | 5.75 | | 3 | 2.50 | 7.00 | | 4 | 3.75 | 8.25 | | 5 | 5.00 | 9.50 | | 6 | 6.25 | 10.75 | | 7 | 7.50 | 12.00 | | 8 | 8.75 | 13.25 | | 9 | 10.00 | 14.50 | | 10 | 11.25 | 15.75 | | 11 | 12.50 | 17.00 | | 12 | 13.75 | 18.25 | | 13 | 15.00 | 19.50 | | 14 | 16.25 | 20.75 | | 15 | 17.50 | 22.00 | | 16 | 18.75 | 23.25 | | -- | -- | -- | | 20 | 23.75 | 28.75 |
| Right Angle
| | Poles | DIM=A | DIM=B | | 2 | 1.25 | 5.75 | | 3 | 2.50 | 7.00 | | 4 | 3.75 | 8.25 | | 5 | 5.00 | 9.50 | | 6 | 6.25 | 10.75 | | 7 | 7.50 | 12.00 | | 8 | 8.75 | 13.25 | | 9 | 10.00 | 14.50 | | 10 | 11.25 | 15.75 | | 11 | 12.50 | 17.00 | | 12 | 13.75 | 18.25 | | 13 | 15.00 | 19.50 | | 14 | 16.25 | 20.75 | | 15 | 17.50 | 22.00 | | 16 | 18.75 | 23.25 | | -- | -- | -- | | 20 | 23.75 | 28.75 |
|

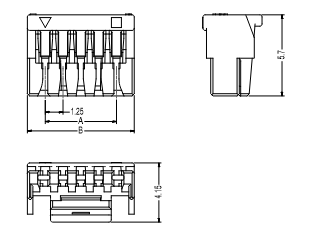

Housing
 | | Poles | DIM=A | DIM=B | | 2 | 1.25 | 5.75 | | 3 | 2.50 | 7.00 | | 4 | 3.75 | 8.25 | | 5 | 5.00 | 9.50 | | 6 | 6.25 | 10.75 | | 7 | 7.50 | 12.00 | | 8 | 8.75 | 13.25 | | 9 | 10.00 | 14.50 | | 10 | 11.25 | 15.75 | | 11 | 12.50 | 17.00 | | 12 | 13.75 | 18.25 | | 13 | 15.00 | 19.50 | | 14 | 16.25 | 20.75 | | 15 | 17.50 | 22.00 | | 16 | 18.75 | 23.25 | | -- | -- | -- | | 20 | 23.75 | 28.75 |
|
Terminal
|
For a dependable and customizable WTB connector solution, reach out
to Alinta today! Let us assist you in finding the perfect solution
for your needs.
